ESonix
ESonix, the numeric's decompression software, offers a reliable, reactive and affordable way to perform a rapid aircraft decompression analysis.
Besides the regular decompression analysis giving delta pressure, and compared to existing competitors, our software features:
- complete and detailed output envelopes
- annotated plots value vs. time

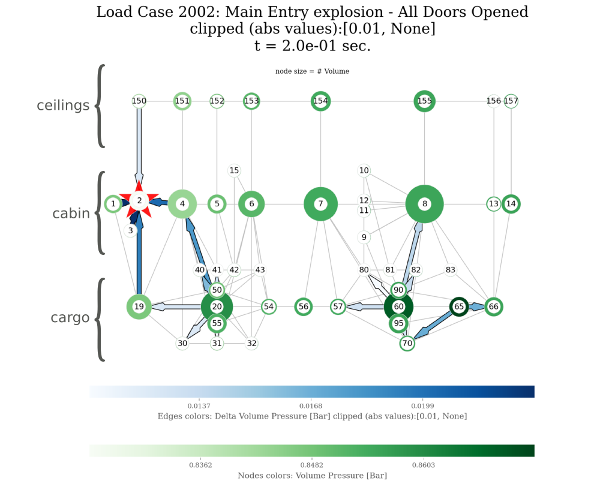

- Aircraft layout at given instant showing A/C status snapshot.
- Sensitivity analysis to support the design phase by giving design trends
- And much more...
Do not hesitate to contact us for further details.
Rapid decompression analysis software
Knowing that rapid decompression is very often a critical issue for large aircraft VIP cabin outfitting, we have made the effort to develop a software that can enable easy trade-off studies and provide design engineers guidance in the reduction of over-pressure.
We have created (and continuously improving) a software package flexible enough to help the user understand all the complex aspects of explosive decompression in a pressurised cabin.
With this important insight, we can now offer to our customers unique and innovative expertise.

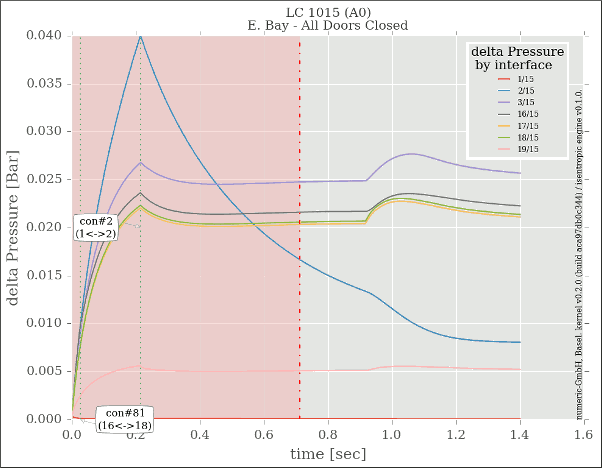

For example, the above curves show the evolution of delta pressure between exploding volume (1) and adjacent volumes.
The red zone highlights the sonic flow period.
All the curves clearly drop around 0.2seconds, thanks to the opening of Connection #2 clearing the path from volume 1 to volume 2.

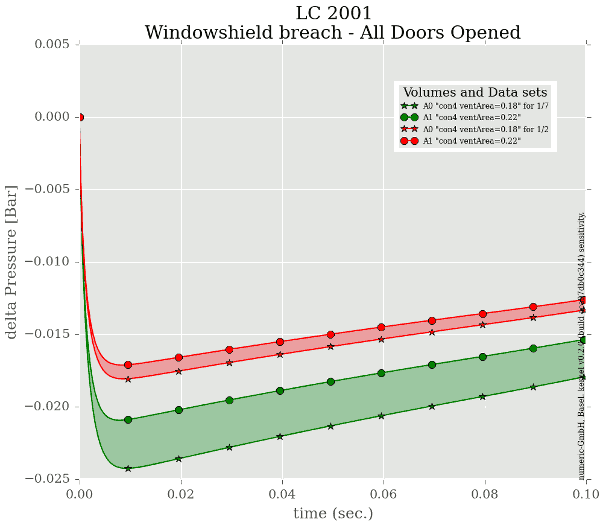

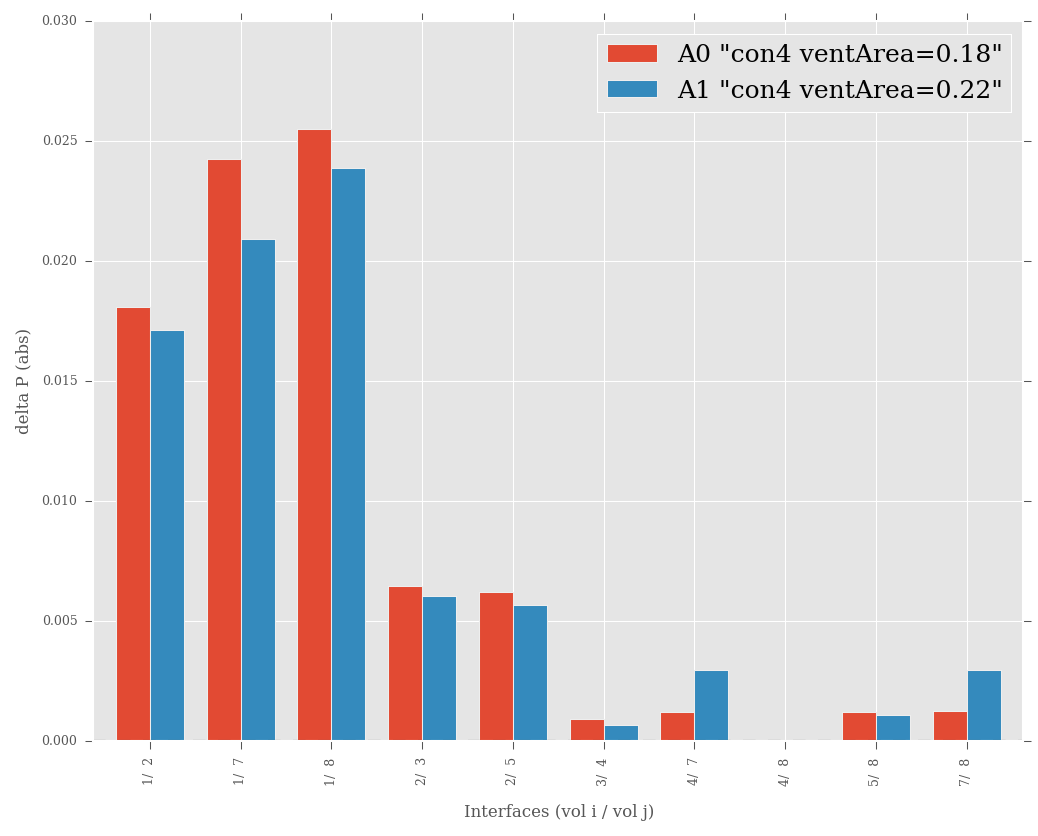

Parameters sensitivity analysis
The main purpose of a rapid decompression simulation is to provide the delta pressures at the interface of cabin volumes. However, besides those main results, it can be very important to identify the guilty parameters responsible of the peak values.
To support our customers during this phase, instead of costly trial and error runs, numeric is able to perform sensitivity analysis at the beginning of the project to identify critical air-paths and parameters.
Advanced visualisation framework
numeric made a strong effort to offer its customers some advanced visualisation tools which are handy to analyse and deeply understand numeric results.
You can check our articles on this website, e.g. a comparison against CFD simulation.
Roadmap
This software is used for our internal usage in order to provide support and expertise to our customers.
But 2015 may reserve some surprises... Stay tuned!
